Cisco Aironet Omnidirectional Antenna Item # 966867
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
966867
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description

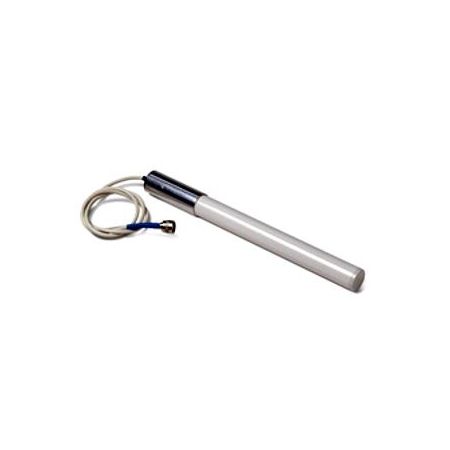

Cisco AIR-ANT5160V-R 6-dBi omnidirectional antenna is a ruggedized high-performance colinear antenna that operates in the 5-GHz frequency range and is designed for use in large rooms or vaulted areas where extended coverage is needed. The antenna is designed to be used indoors or outdoors and can be mounted on a mast.
Product Details
| Item # | 966867 |
| Manufacturer # | F34030 |
| Maximum Antenna Range | 823.5 ft |
| height | 11.5 in |
| Additional Information | All range estimations are based on an external antenna associating with an integrated Intel Centrino client adapter under ideal conditions. The distances referenced here are approximations and should be used for estimation purposes only.Application: Indoor/outdoor midrange antenna |
| Directivity | Omni-directional |
| Product Line | Aironet |
| width | 1 in |
| package contents | Omni-Directional Antenna; Ceiling mount kit consists of the following hardware:One T-rail grid bracket; One bracket plate; Two internal tooth lock washers; Two #6-32 x 1/4-in. SS Phillips machine screws; One I-beam clamp; One 1/4-in. flat washer; One 1/4-in. split lock washer; One 1/4 x 20 x 1/2-in. hex head bolt; Pole (mast) mount kit consists of the following hardware:Six 5/16-in. x 18 SS hex nuts; Four 5/16-in. SS lock washers; One U-bolt; One V-bracket; Two base brackets |
| Product Name | Aironet Omnidirectional Antenna |
| Antenna Gain | 6 dB |
| manufacturer | Cisco Systems, Inc |
| Number of Connectors | 1 |
| Compatibility | Cisco Aironet 1200 Series Access Points |
| Application/Usage | Wireless Data Network |
| Polarization | Vertical |
| weight | 5.30 oz |
| brand name | Cisco |
| frequency | 5.15 GHz to 5.85 GHz |
| length | 3 ft. |
| Frequency Band Type | SHF |
| diameter | 1" |
| connector type | RP-TNC |
| warranty length | 1-year limited |
| Survival Wind Speed | 2200 in/s |
| model name | AIR-ANT5160V-R |
